Slope Monitoring in the Spotlight
We investigate the drivers behind the host of new geotechnical monitoring products that have launched this year

By Carly Leonida, European Editor

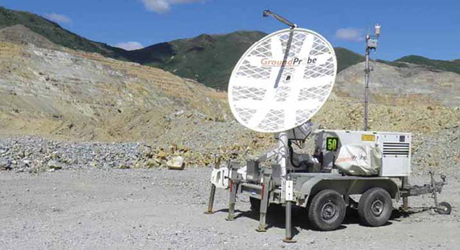

Groundprobe monitoring equipment in action at Bingham Canyon copper mine in the U.S.
(Photo: Kennecott Utah Copper)
This year has been littered with reports of landslides at mining operations. The most recent, on October 4, saw 16 illegal miners killed at the shuttered Kampene gold mine in eastern Democratic Republic of Congo. Another 43 illegal miners died on June 27 in a landslide at the Kamoto Copper Co. concession near Congo’s southern border with Zambia. The copper-cobalt mine is run by KCC, a subsidiary of Glencore, which said in a media statement that the artisanal miners were working two galleries in benches overlooking the extraction area when the galleries caved in. The army was called in as part of the search and rescue operation.

A landslide at a gold mine in the Tibesti region of Chad killed 30 people in September, and three workers lost their lives at an open-pit mine near Milas in Turkey in February thanks to a landslip. These are just a handful of incidents that have made their way into mainstream media coverage this year; there will have been many more that have gone unreported and, of course, it’s impossible to talk about slope stability without mentioning the tailings dam collapse in Brumadinho, Brazil, in January where 248 people lost their lives.

While coverage of tailings-related events has done much to highlight the importance of slope monitoring systems, managing and preventing landslides at these types of facilities deserves its own article, and for the purposes of this feature, let’s stick to examining slope stability in open pits exclusively.

Tailings facilities aside, it’s fair to say that slope stability is currently having a moment in the spotlight, and this is likely to continue as next year will see the return of the biannual International Symposium of Slope Stability in Open Pit Mining and Civil Engineering, better known as the Slope Stability 2020 conference. The forum, which is convened by the Australian Centre for Geomechanics (ACG), will take place from May 12-14 in Perth, Western Australia. It’s seen as the go-to event for open-pit mining and civil engineering practitioners, consultants, researchers and suppliers from across the globe, allowing them to exchange views on best practice and state-of-the-art technologies.

The topics of pit slope investigations, design, implementation and performance monitoring are expected to take center stage next year, and a workshop has been added specifically to cover instrumentation for slope monitoring. “This ACG workshop will focus on new developments relating to conventional terrestrial monitoring systems such as open-pit radars, prisms, laser scanning, and photogrammetry, as well as the integration of the different types of these monitoring systems and their interpretation,” the ACG said on its website. Considerable advances have also been made in remote sensing using different types of unmanned aerial/piloted vehicles (UAVs) for slope monitoring at mine sites, and for in-ground monitoring techniques, both of which will also be covered in the workshop.

Current Challenges
Before talking about advances in slope monitoring technologies, it is pertinent to look at the challenges that open-pit operators are currently up against. Successful slope stability design is, and has always been, dependent on striking the correct balance between an acceptable level of stability and optimizing the economic extraction of an orebody. To achieve this requires expert input early on in a project, adequate geotechnical data and sufficient slope stability analyses to justify the mine design. Australia-based consultancy firm, AMC Consultants, has deep expertise in slope analysis and design. Meredith Goss from AMC’s geotechnical team in Melbourne, spoke to E&MJ about some of the challenges facing open-pit operators today.

“Due to project economics, geotechnical engineers are often expected to give aggressive slope designs using a very limited amount of data,” she explained. “Mine designs can be exposed to risk due to low confidence in the geotechnical data, and often there is little attention paid to hydrogeology in the initial stages of design. “It is necessary to obtain a balance between an optimal mine design based on economics and allowing for contingency, that is, having some flexibility available to adjust the bench configuration in the mine design in the event of unexpected ground conditions. Slope design does not stop at the project stage, but geotechnical data collection (drilling, mapping, data processing and monitoring) needs to continue throughout the operational life of the mine, and the data needs to be incorporated in the pit design and mine planning process.”

Goss noted that mine operators have become more aware of the risks associated with slope stability in recent years, however, this is often dependent upon the size of the operation. She added that finding and employing experienced geotechnical engineers for site-based roles remains one of the greatest challenges that mines face. As such, geologists are often required to complete routine geotechnical data collection and processing in addition to their other duties. This makes digital data collection systems that can present accurate and timely data in an easy-to-read format all the more valuable.

“The capability of monitoring systems on the market is continually improving, especially for monitoring larger scale displacements,” she said. “It is necessary to get the correct proportions of knowledgeable people on the ground, machine monitoring, data collection, and analyses to understand the rock mass conditions. “Generally, the use of expensive monitoring equipment is driven by economics, for example, economic gains brought about by having steeper pit walls will pay for a radar or a rock fence. The challenge is ensuring the data is communicated through the business and mine planning process.”

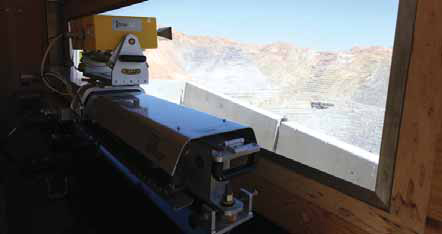

Scanning pit slopes for movement. (Photo: Kennecott Utah Copper)
The AMC geotechnical team works with mine operators to develop a proactive approach to identifying and managing geotechnical issues. The company has particular expertise in the analysis and interpretation of ground conditions to develop geotechnical models, integrating slope-stability analysis, numerical modelling, sound open-pit design and geotechnical risk management. “AMC maintains an extensive and up-to-date Smart Data System of mining costs and productivities for surface and underground mines. The system is recognized as the world’s largest, most comprehensive suite of validated, site-level performance benchmarking data set available, for mining,” Goss stated proudly.

To date, AMC has completed more than 60 detailed open-pit benchmarking studies worldwide, including productivity and cost benchmarking. Most of the studies conducted during the past year were for return clients that rely on AMC to provide independent accurate benchmarking information. The company’s methodology allows the comparison of a site’s performance to a cross-section of comparable operations, helping them to achieve superior results.

Mines Delve Deeper
AMC also assists clients with reviewing current slope designs, continuous improvement, benchmarking studies to establish the exposure to risk, and evaluating the economics of mining deeper pits or heading underground. As pits become deeper, the economic drivers for steeper slopes become more significant, and it becomes much harder to include conservatism or flexibility in the design to allow for unforeseen changes in geotechnical conditions. The aggressive slope design angles, which are often adopted to make deep pits economically viable, increase rockfall risk through crest loss, filling of berms, increased frequency of rockfalls and slope failure.

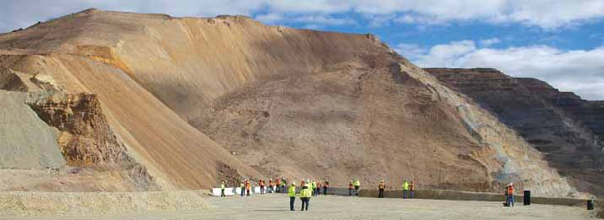

Journalists examine the site of the 2013 Manefay landslide at Kennecott Utah Copper’s Bingham Canyon mine. The slide was the largest
non-volcanic event in North American history, but thanks to extensive preparations by the KUC team, no one was hurt.
(Photo: Kennecott Utah Copper)
Prism monitoring systems can measure slope movement, however, they are generally ineffective for rockfall monitoring, and across large pits radars generally lack the resolution to predict large rockfall events. This is especially true where vertical or sub-vertical batters have been mined. As depth increases, stress increases, and this is likely to result in some level of micro seismicity and rock mass damage. Hydrogeological conditions are often not well understood but can have a significant effect on slope stability. As pits become deeper groundwater conditions within pit slopes also have more influence on stability. Toward the base of the pit, floor space can be at a premium and ancillary activities such as drilling dewatering holes will often get pushed aside in favor of production-based activities like drilling and blasting and/or haulage.

So, how can engineers determine the safe depth limit for an open pit and whether to continue mining from the surface or head underground? Goss explained: “There is currently no defined safe depth limit for an open pit. The decision to head underground is affected by economic and safety risk, and the size and shape of the orebody.” Again, this serves to emphasize the need for a reliable and robust monitoring system. However, as with many decisions, the cost of monitoring needs to be justified.

“Not everyone is going to be able to afford a radar,” said Goss. “The cost must be weighed against the potential benefits of managing the geotechnical risks, e.g., rockfalls, structural failure or overall wall failure. How fast is a failure likely to occur: hours, weeks or months? “Different monitoring systems will be more or less effective depending on the anticipated rate and mode of failure. Understanding the limitations or blind spots for each monitoring technology is important. The monitoring system should comprise of several technologies that can be combined to give an overall picture of what is occurring.”

It is necessary to consider whether the monitoring system will send alarms for operational hazard management, in which case real-time data collection and continuous radio/telecommunication links are required. Alternatively, the system may be intended to collect background information that helps better understand the geotechnical behavior of the mine. Accessibility and reliability are key considerations, particularly in large pits, as access along benches and berms is often restricted and there may be no access for personnel to install instruments or collect data, and a remote method may be required. Goss told E&MJ that AMC is also seeing more requests for assistance from mines with aging infrastructure and long lives remaining.

“The requests include reviewing current slope designs and providing advice on management of ground conditions, while finding opportunities to implement new world-class technologies, which will optimize the mines for the future,” she explained. “The AMC team works collaboratively with mine personnel, undertaking a logical and phased sequence of mining support services with practical mining method solutions and technologies.”

Tech Talk
IDS GeoRadar, part of technology giant Hexagon, is one of a handful of vendors that is leading the way when it comes to next-generation mine slope monitoring systems. Anna Serangeli, sales operations offi- cer, at IDS’s Mining Business Unit, spoke to E&MJ about the biggest advances seen in slope monitoring technologies and practices in recent years. “The introduction of synthetic aperture radar (SAR) technology has given users the possibility of having higher spatial resolution, longer working distances, faster scan times and a broader area of coverage all in one product,” she said.

“We have come a long way since depending on instruments such as inclinometers and extensometers, but aside from this, the improved performance of slope monitoring radars has allowed for their use to extend to other forms of monitoring. For example, focus monitoring of known instabilities close to working areas using a compact portable radar, or background monitoring of very small movements, which provide data that is then used in modelling and mine design. “When designing software, the focus is on making products accessible virtually anywhere (cloud based) and combining available technologies into one visualization and analysis platform, as well as ensuring integration with the various technologies and providers used at a site.”


Reutech Mining launches the newest version of its MSR
scanner, the MSRIV Espirit, in July. (Photo: Reutech)
Serangeli added: “What I personally regard as an important step in the right direction is that slope monitoring using radar technology has become a standard safety practice among all major mining companies. In time, this has translated into it spreading to tier-two operations, as it is becoming more affordable and the cost/benefit proven in increased safety for professionals at all levels.” As far as digitalization and communications go, some of the biggest strides have been in the instruments that are now able to create and send alerts, including emails and text messages.

“Having smart data management platforms allows mines to maintain a real-time alarm system, and also collect data on events for analysis and planning optimization,” said Serangeli. IDS has found that the complexity of managing safety while “mediating” other essential functions of the mine such as planning and operations, is one of the major challenges that its customers face.

Serangeli explained: “It’s hard enough to make sure that safety precautions and interventions have the least possible impact in standard conditions. Doing this in a situation where an instability needs to be monitored and safety procedures are in place is even more difficult. “This is often rendered even more challenging with the amount of work that a team has to follow, and the reliability and availability of data is the best way we can help our customers in making their jobs easier.”

IDS Offers Intelligent Slope Design
IDS has launched a couple of new products for the slope monitoring market this year including GeoMonitoring Hub and RockSpot. “GeoMonitoring Hub is an example of the importance of integration that is requested from our customers today,” Serangeli told E&MJ. “A software is now able to combine, analyze, visualize and cross-check all measurement results delivered by automated monitoring systems, such as Total Stations, GNSS, radar systems, geotechnical and environment sensors, InSAR, as well as manual readings. The work of geotechnicians is based on the ability to use complex data coming from many sources, and the possibility of having a holistic view of the available data, is highly appreciated.”

RockSpot, which was announced in May, is a radar system that can locate, track and alert on rockfalls in real-time. While interferometric radars and laser scanners can monitor the period before and after a rockfall event, the very sudden nature of a rockfall makes it difficult to detect using existing technology. RockSpot is specifically designed to pick up on movements that are too fast for interferometric radar and laser scanners and can track the event as it happens with detail on the trajectory, runout and speed of the fall.

In September 2018, IDS also announced it was partnering with geotechnical expert, Rocscience, to integrate deformation monitoring data from IDS’s slope monitoring radars into slope stability numerical models in Slide3 and RS3. The company said this move was an industry first, and an important step toward “intelligent slope design,” but what exactly does that mean?

“This integration is a very important one for our customers,” said Serangeli. “The use of advanced radars will result in faster and smoother work for geotechnical engineers. The next releases of Slide3D and RS3D from Rocscience will feature a direct communication with IBIS Guardian technology through an application programming interface (API). Users with the Guardian API will be able to automatically schedule and import radar maps into Rocscience geotechnical models, without the need to manually export/import.” And thanks to the latest ArcSAR technology, it is now possible to capture deformations every minute on an entire slope.

Cold Weather No Longer an Issue
IDS is not the only vendor that has been busy. In March, Maptek released a cold climate version of its award-winning mobile Sentry system for stability monitoring. Product manager, James Howarth, explained: “Risk management remains a priority. If anything, the reliable operation of technical equipment is even more critical in extreme conditions.” Sentry is a mobile remote-monitoring system that uses laser scanning to continuously measure ground movement with extremely fine spatial resolution and accuracy. Housed in a self-contained unit with autonomous power and communications capabilities, it relies on sophisticated software to monitor, analyze and report in real-time.

Maptek redesigned all of the major components in the standard temperature Sentry mobile system, with significant changes to achieve the required cold climate specifications. The new system can operate continuously from -20°C to +50°C, with operation for a limited time in temperatures below -20°C. It features an XR3 cold climate laser scanner, which has been redesigned and tested to operate at low temperatures, and a removable neoprene jacket for the scanner to provide extra protection against wind chill.

In very cold conditions, the charge acceptance of batteries is low, so the battery pack and housing in the Sentry M20 have been redesigned and insulated to keep the unit at a stable operating temperature. Other built-in elements such as generator, hydraulics and electrical systems were adapted to maintain energy efficient, cost-effective operation. Users can customize monitoring frequency and thresholds to meet strategic design and operational planning needs, and provide accurate, timely reports to geotechnical teams and management for managing risk and safeguarding operational environments.

The 3D point cloud data that is collected can be used for geotechnical analysis and other applications. The data can be analyzed by either Maptek’s Sentry monitoring package or its PointStudio point cloud processing software to look for deformation between scans.

Maptek Makes Over I-Site Studio
PointStudio 8, which is the latest version of the software, was released in December 2018. It represents the next step from Maptek’s well-known I-Site Studio point cloud processing and modelling package. The new generation 3D platform for modelling, analysis and reporting is delivered on the Maptek Workbench, which allows data sharing with other Maptek applications.

“Customer needs were the key mindset behind the PointStudio release,” Howarth said in the press release. “A modern ribbon interface improves usability and means faster uptake for new users.” One of the benefits of moving to the Workbench is access to the Workflow Editor for building interactive command sequences. PointStudio users can link workflow components to data and easily run automations in context. “A good example is site-configured registration workflows. This incorporates data import and filtering, as well as all the steps required for getting a registered point cloud ready for processing and analysis,” said Howarth.

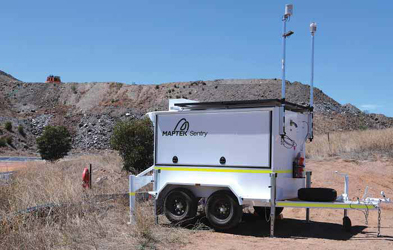

Maptek’s Sentry mobile system. The company recently releases a cold climate version of the
equipment for mines with Arctic conditions. (Photo: Maptek)
“The Maptek brand has evolved considerably over the past 37 years. Changing the name of our software to Point- Studio does not alter our commitment to developing and supporting spatial mining solutions.” Sentry recently proved its worth at Hillgrove Resources’ Kanmantoo copper mine in South Australia. In December 2018, about 6,000 metric tons (mt) of rock slid from a height of 24 meters on a rock structure, following a failure on a series of closely spaced J4 joints that dipped steeply out of the west wall of the pit.

The three-week remediation work included construction of an access ramp, removal of overhang by scaling and blasting, scaling back the scarp and removal of ramp and rockfall debris. During this, Maptek Sentry Patrol was set up on a tripod in the base of the pit to monitor wall movements. This allowed the best line of sight for the laser scanner compared to crest locations, to detect potential rock movements. Periodic monitoring with the Patrol system mounted on a tripod, wall or bollard allows large scenes to be quickly captured, helping to determine zones to watch more closely. Continuous monitoring can then be used where conditions pose the greatest risk, providing real-time accurate data to guide safety management programs.

Hillgrove Resources said this approach had proven very successful. No wall movements were observed above the remediation works other than the scaling effects and minor mesh movements. Following the success of the remediation work monitoring, Hillgrove Resources decided to staff the Sentry Patrol system with trained pit technicians to monitor on a three-minute scan basis whenever personnel are working on the west wall. A Wi-fisystem allows geotechnical staff to remotely access the system to assist in interpretation 24 hours a day. The setup will continue throughout the final 36 m of excavation of the 350 m deep, steep-walled pit.

Orica Monitor Provides Data Aggregation
GroundProbe and Nitro Consult are now part of Orica Monitor, a newly formed business stream of global explosives expert, Orica. The division was set up to provide geotechnical monitoring solutions to the global mining and civil construction industries and launched its first product in August.

MonitorIQ is a data aggregation software that provides users with a holistic visualization of all sensor data across a mine site for accurate analysis of geotechnical and environmental conditions. It helps mines safely execute blasts while maintaining the integrity of surrounding pit walls. MonitorIQ allows users to collate and compare data from more than 120 sensor types on one platform including the suite of radar, laser and vibration monitors provided by GroundProbe, as well as prisms, piezometers, drones, temperature readers and air pressure measurements.

The new software can also consolidate data across multiple sites including mines, tailings dams, natural landscape hazards or built structures. MonitorIQ comes with GroundProbe’s geotechnical analysis software, SSR-Viewer, fully embedded. This gives users access to SSR-Viewer’s suite of visualizations and safety-critical charting and alarming tools, on-the-fly, direct from MonitorIQ. “MonitorIQ completely eliminates the need for users to switch between multiple platforms when working with any data collected on-site,” said Lachlan Campbell, GroundProbe vice president of marketing and technology, on the launch.

“This combined with SSR-Viewer’s deep dive analysis capability presents an interface that is integrated and intuitive.” Like IDS, Groundprobe also teamed up with Rocscience in April to allow GroundProbe’s Slope Stability Radars or lasers systems to import data into the Slide3 and RS3 slope stability programs. The data can then be automatically visualized with the geotechnical model, inclusive of factor of safety heatmaps and probability of failure models. Users of GroundProbe’s SSR-Viewer software can also import Slide3’s 3D failure model as a layer, allowing the model to be overlaid with real-time deformation data.

Having the data flowing two-ways between a geotechnical modelling package and a geotechnical monitoring package means engineers can perform a deep-dive analysis in either software. Users can verify their geotechnical model assumptions with the radar data overlaid in Slide3, while another could be using the geotechnical model in a real-time monitoring system to see the spatial changes in deformation over time.

The Slide3 platform allows geotechnical engineers to calculate the factor of safety of complex 3D slope stability geometries that 2D models cannot fully simulate. It also allows for the modelling of advanced geometries like landslides, MSE walls, slopes supported by soil nails, and more. With Slide3, users can calculate failures in any direction without the need for defining the direction in advance, increasing efficiency in modelling and analysis.

Reutech Launches MSRIV Esprit
South Africa-based Reutech Mining launched its fastest scanning slope monitoring radar in July, the MSRIV Esprit. The company said the high scan speed ensures early detection of developing slope failures at mines and enables accurate detection of fast-moving slopes in rapidly changing atmospheric conditions.

Esprit uses the latest core radar technologies to increase the safety reaction time between first warning and the possible event of a slope failure, thereby contributing to the confidence of mining operations. Product Manager Neville Greyling explained that the MSRIV Esprit can scan an area of 22 million m2 at an operating range of 4,000 m in less than two seconds. “Due to the fact that an entire area is measured instantaneously, we can provide the truest, up-to-date slope data,” he said.

Coupling instantaneous 3D area measurements with a fast scan time allows slope velocities of up to 13,500 mm/h to be attained during critical monitoring. Additionally, during strategic monitoring, smaller movements can be detected with greater accuracy. “This means predicting potential failures earlier and increasing warning times. It will result in overall safer openpit mines in areas prone to fast moving slopes, and with rapidly changing atmospheric conditions,” added Greyling.

GEOSLOPE Joins Seequent M&A activity has also been on the cards this year. In October, GEOSLOPE, a Canadian company that creates geotechnical analysis software announced it would become part of geoscience software leader Seequent. GEOSLOPE President Paul Grunau said, “Over the years, we have invested in the long-term growth of the company to develop a set of world-class solutions for geotechnical engineers. Joining Seequent presents the opportunity for greater integration of geotechnical analysis into the overall engineering and design workflow, thereby enabling our customers to more effectively analyze their problems and deliver better outcomes.”
