New Flotation Lab Circuit Will Cut Test Turnaround Time



With the addition of this fully automated, four-stage flotation lab circuit, Eriez reportedly
provides detailed analysis of most flotation circuit configurations using laboratory
equipment ranging from grinding mills to bench-top and continuous conventional and
column flotation cells.

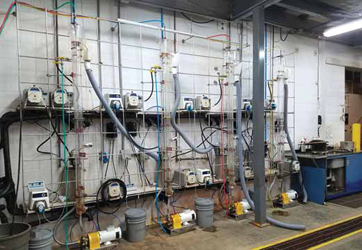

Eriez Flotation Division (EFD) has commissioned a fully automated, four-stage lab-scale column circuit for flotation testing on sulfide and industrial minerals. Operating parameters such as air flow rate, wash water flow rate, reagent addition rates and pH level are regulated using a programmable logic controller (PLC). The flotation circuit can be altered to accommodate multiple circuit configurations ranging from one (i.e. rougher) to four (i.e. rougher-scavenger-cleaner- cleaner) unit operations, dependent upon the characteristics of the feed ore. The circuit is also capable of incorporating recirculating loads. The automated circuit can be utilized to conduct steadystate column flotation tests at feed rates of up to 15 kg/h.

EFD said it can provide detailed analysis of most flotation circuit configurations using laboratory equipment ranging from grinding mills to bench-top and continuous conventional and column flotation cells. Typical tests range from exploratory batch testing to the evaluation of multistage flotation circuits. According to the company, its analytical lab — including an XRF (X-Ray Fluorescence), ICP-OES (Inductively Coupled Plasma Optical Emission Spectrometry), sulfur analyzer and laser particle size analyzer — can conduct in-house assays and improve turnaround time on testing.
