Horizontal Screen Tops Terex’s Modular Line

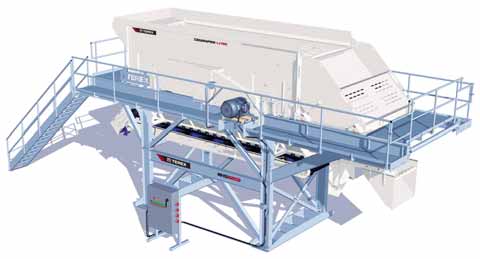

Terex Minerals Processing Systems has launched the MHS8203 horizontal screen module—its largest modular screening unit to date—thus increasing the screening capacity and application capabilities of its existing modular product range. The MHS8203 features the new Terex Cedarapids LJ-TSV 8 x 20-ft (1,438 x 6,096-mm) screen with El-Jay oval stroke action. The module’s blending gate system and rolling chute mechanism permit exceptional product control, according to the supplier. Other key features include an extra-heavy-duty I-beam frame, rigid diagonal truss construction, and a galvanized steel structure including walkways, stairs and guard rails. The module structure and all its components are CE/ISO compliant. Designed with logistics in mind, the entire MHS8203 module is easy to transport in shipping containers. Terex’s modular product line consists of several pre-designed static and semi-static crushing and screening “plug and play” modules. Setup time and ease of operation is aided by the simplicity of the modular product range. Modules are designed to fit and work together interchangeably. All Terex MPS modules bolt together on site and require minimal on-site wiring. www.terexmps.com
