Lube and Fuel Hauler for Underground Operations

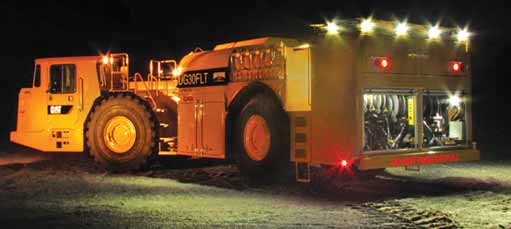

Underground Force’s UG30FLT articulating fuel and lube truck is designed to offer high versatility in transporting large volumes of products in extreme underground mining applications. The fluids truck is built around the Cat AD30 underground articulated dump truck chassis for reliability and efficiency, according to the company. The UG30FLT is capable of carrying more than 1,500 gallons of fuel and 400 gallons of lubricant and coolant, along with other customizable product options. Its design includes fully baffled product tanks, product filtration and metering, product tank heating if required, and an enclosed reel compartment with roll-up doors. Other features include new or used filter storage and an LED lighting package. External dimensions are: height, 107 in. (2,717 mm); width, 106 in. (2,692 mm); and length, 443 in. (11,252 mm) with an outside turning radius of less than 30 ft (9.1 m). Its standard safety features include anti-skid upper deck surfaces, handrails, three-point cabin and machine access, push-out safety glass, steering frame lock, rear window guard, body retaining pins, automatic retarder control, exhaust heat shielding and firewall and hitch hydraulic hose burst protection sleeves.

www.gfworldwide.com


As featured in Womp 2013 Vol 09 - www.womp-int.com
