Tool Carrier Offers Greater Breaking Power, Stability

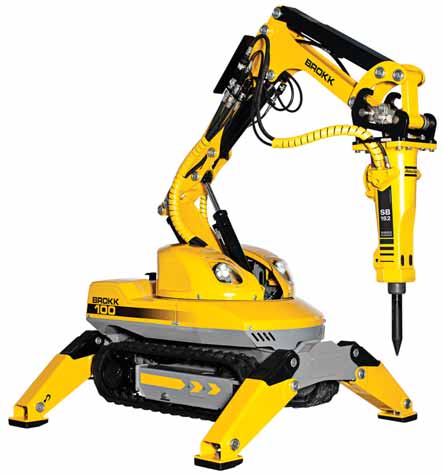

Brokk AB has unveiled its model 100 all-tool carrier, featuring a more compact design and 35% greater breaking power than the model 90. The 100’s low-pro-file configuration, featuring a three-piece boom design, is less than 4 ft tall and offers a lower center of gravity for greater stability. A new load-sensing hydraulic system with improved hydraulic capacity helps generate superior breaking power when paired with the included Atlas Copco SB152 breaker. Maximum hori-zontal reach is 12 ft (3.6 m), with verti-cal reach of 14 ft (4.2 m). According to Brokk, the new machine is the first in the industry to deliver the flexibility of true 360° working performance, without com-promising stability, productivity or relia-bility. The Brokk 100 is powered by a 32-amp, 20-hp electric motor and weighs 2,183 lb (990 kg) excluding attach-ments.. Recommended maximum weight of attachments such as beam manipula-tors, breakers, crushers, drills and shears is 331 lb (150 kg). Additional improve-ments and features include upgraded cooling capacity, impact-resistant steel covers, improved rubber pads on the out-riggers and LED lights with virtually unbreakable covers.
