Remote Valve Cycling Unit

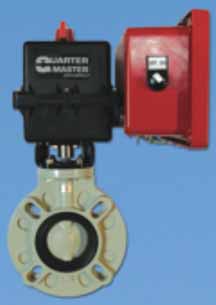

Asahi/America’s QM Remote Cycle unit can provide continuous and reliable cycling in remote mining applications. A complete QM Remote Cycle unit consists of an Asahi/America Series 94 electric actuator with self-powered battery and open/close timer, mounted to a ball or butterfly valve for use in areas where power sources are limited or unavailable. The QM Remote Cycle unit features a NEMA 4X engineered resin enclosure with stainless steel trim, on/off switch, open and interval times adjustable via dip switches, and manual override. The 12-vdc rechargeable battery can cycle 1,100 times once fully charged. The QM unit and Series 94 quarter-turn actuator can be mounted to Asahi/America Type 57 butterfly valves (sizes 1-1/2–4 in. / 38–101 mm), and Type-21 ball valves (sizes 1/2–2 in. / 12–50 mm).
