High-Performance Transformer Oil Coolers

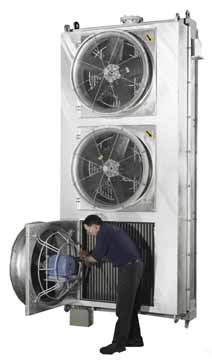

Unifin, a supplier of cooling equipment and transformer oil pumps and valves, has introduced the ForZair line of transformer oil coolers for superior performance in demanding applications. ForZair coolers are designed for new transformers and for existing installations that require additional heat removal capacity. The coolers feature Unifin’s Mono-Aluminum extruded fin-tubes and plate fin technology, both of which are claimed to provide optimal heat transfer efficiency and exceptional durability. ForZair coolers are available in forced oil-to-forced air, natural convection oil-to-water and forced oilto- water models, in 50 and 60 Hz versions. Unifin says it uses an advanced oil flushing system, which achieves the highest ISO standards for cleanliness in the transformer industry. Hinged fan panel design makes it easy to open the cooler and pressure-wash the fin surface, thereby maintaining maximum performance of both the cooler and transformer.

www.unifin.com

As featured in Womp 08 Vol 2 - www.womp-int.com
